Transformer Insulation End Ring Equal Division Draw Line Machine, Transf...


Basic Info.
Model NO.
CNCDFY
Certification
ISO
Power Supply
AC220V 50Hz
Transport Package
Standard
Specification
customized
Trademark
ZHONG XINJIE
Origin
Shandong China
HS Code
84289090
Production Capacity
15

Product Description



Machine usage

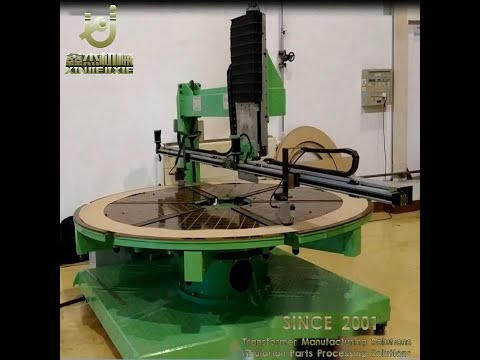

It is mainly used for dividing the insulation end ring into equal parts and drawing lines
in transformer production. The end ring is manually placed on the worktable of the machine. The user only needs to input the equal score and the inner and outer diameter of the end ring through the touch screen to realize automatic bisection and scribing.

Product Parameters

Working efficiencyAbout 3 mins/pc
Drawn line width≤1mm
Drawn line accuracy±0.02°
Block width35mm-50mm
ID adjustment rangeΦ500-Φ3200mm
Inkjet head height adjustment range10-80mm
Worktable height750mm
Max. Outline dimensions(L*W*H)6000*3400*1200 mm
Power supplyAC220V 50Hz
